Optical Transceiver Modules — Quagwire Technologies

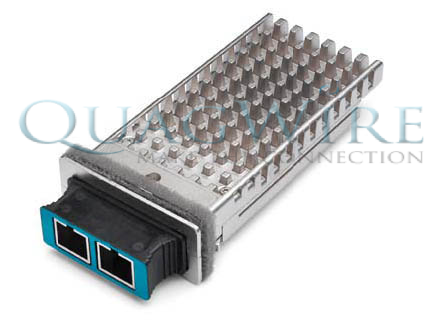

X2 Transponders

(optical; longwave and shortwave)

DATACOM Applications

• 10 Gigabit Ethernet, and 10x Fibre Channel

FEATURES

• 1.2 V, 3.3 V and 5 V Operating Voltage
• Supports Bit Rates up to 10.5 Gb/s
• 1 Gb/s Fibre Channel Compliant
• Distances from Very Short Links up to 80 km
• Digital Diagnostics Functions Available

FTLX8541E2 – 10 Gb/s 850nm Multimode 10GBASE-SR X2 Transponder
FTLX8541F2 – 10 Gb/s 850nm Multimode 10GFC X2 Transponder
FTLX1341E2 – 10 Gb/s 1310nm 10GBASE-LRM X2 Transponder
FTLX1442E2 – 10 Gb/s 1310nm Single Mode 10GBASE-LR X2 Transponder
FTLX1442F2 – 10 Gb/s 1310nm Single Mode 10GBASE-LR X2 Transponder

X2-10GB-T-QW - 10GBASE-T X2 Transceiver (CAT6A/CAT7 Copper, 100m)
X2-10GB-CX4-QW - 10GBASE-CX4 X2 Transceiver (Copper, 15m)
X2-10GB-SR-QW - 10GBASE-SR X2 Transceiver (Multimode, 850nm, 300m)
X2-10GB-LR-QW - 10GBASE-LR X2 Transceiver (Singlemode, 1310nm, 10km)
X2-10GB-LX4-QW - 10GBASE-LX4 X2 Transceiver (Multimode, 1310nm, 300m)
X2-10GB-LRM-QW - 10GBASE-LRM X2 Transceiver (Multimode, 1310nm, 220m)
X2-10GB-ER-QW - 10GBASE-ER X2 Transceiver (Singlemode, 1550nm, 40km)
X2-10GB-ZR-QW - 10GBASE-ZR X2 Transceiver (Singlemode, 1550nm, 80km)
DWDM-X2-QW - 10GBASE-DWDM X2 Transceiver (Singlemode, DWDM, 80km)

J8440B-QW - 10GBASE-CX4 X2 Transceiver (Copper, 15m)
J8436A-QW - 10GBASE-SR X2 Transceiver (Multimode, 850nm, 300m)
J8437A-QW - 10GBASE-LR X2 Transceiver (Singlemode, 1310nm, 10km)
J9144A-QW - 10GBASE-LRM X2 Transceiver (Multimode, 1310nm, 220m)
J8438A-QW - 10GBASE-ER X2 Transceiver (Singlemode, 1550nm, 40km)

SO-X2-SR – X2, 10GBase-SR, 10.3125 Gbps, 850nm, DDM, 5dB, 82m
SO-X2-LR – X2, 10GBase-LR, 10.3125 Gbps, 1310nm, DDM, 10dB, 10km
SO-X2-ER – X2, 10GBase-ER, 10.3125 Gbps, 1550nm, DDM, 13dB, 40km
SO-X2-ZR – X2, 10GBase-ZR, 10.3125 Gbps, 1550nm, DDM, 24dB, 80km
SO-X2-ER-Cxx – X2, 10GBase-ER, CWDM 1470nm-1610nm, DDM, 40km
SO-X2-ZR-Cxx – X2, 10GBase-ZR, CWDM 1470nm-1610nm, DDM, 80km
SO-X2-ZR-Dxxxx – X2, 10GBase-ZR, 10.3125 Gbps, DWDM, DDM, 24dB, 80km
